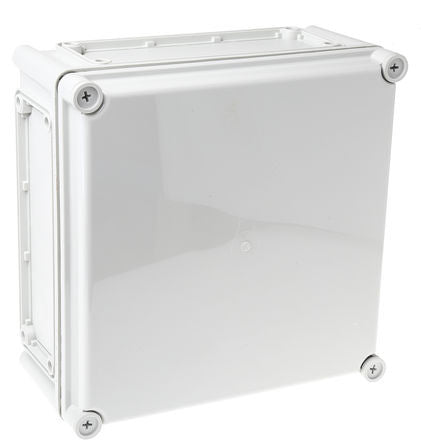

Polycarbonate Enclosure, IP66, IP67, Flanged, 280 x 280 x 130mm - SME581-363

Description

SME Series Polycarbonte Enclosure with Chassis Plate

The SME Series is an ideal enclosure for housing electrical equipment in either a single enclosure or a flexible modular system. These polycarbonate enclosures are impact resistant, self extinguishing and resistant to most acids and alkalis. The temperature range of the enclosure material is -40°C to +120°C, (+80°C for continuous use) and the flammability rating is UL94-V2.

RoHS compliant and halogen-free
UV resistant, complies with UL 508
Ingress Protection (EN 60529) to IP66/IP67
Impact Resistant (EN 62262) to IK08 for side surface and IK09 for front surface
Note

Optional gland plates and fasteners which fit pre-pressed openings and extension frames which increase enclosure height by 50mm, are available separately.
Standards

USA Enclosures for Electrical Equipment, UL Type 1, 3, 3S, 4, 4X, 6, 6P and 12; UL File E75645.
Canada Industrial Control Equipment, Enclosures for Electrical Equipment/cUL.
Europe Empty enclosures for low-voltage switchgear and controlgear assemblies EN 62208:2003 (50298:1998).
Europe Safety of Information Technology Equipment, EN 60950, RoHS directive 2002/95/EC.
Russia GostR - Gost Russian certificate of conformity.
Supplied with

Enclosure, lid & screws, PUR/EPDM gasket and chassis plate & screws.

Modifications and Customizations:
Stahl Metall Engineering excels at modifying and customizing products to your specifications.
Contact us for Data sheets, Pricing and Availability

NEMA Enclosure Types.

Share this Product

More from this collection

IP68 Aluminium Enclosure Shielded 275 x 175 x 66mm - SMEDEL480-C090

$150.00

IP68 Aluminium Enclosure, Wall Mount, NEMA 75 x 108 x 148mm - SMEAN-2805-AB

$109.00

IP68 Aluminium Enclosure, Wall Mount, NEMA 55 x 146 x 222mm - SMEAN-2807-AB

$99.00

IP67 Aluminium Enclosure Shielded, shielded, Flanged, 162 x 162 x 55 - SMEHQ025EMSBK

$225.00

	Body Material	Polycarbonate
	External Dimensions	280 x 280 x 130mm
	External Length	280 mm
	External Width	280 mm
	External Height	130 mm
	IP Rating	IP66, IP67
	Colour	Grey
	Lid Colour	Grey
	Flanged	Yes
