MIL-Spec Braid

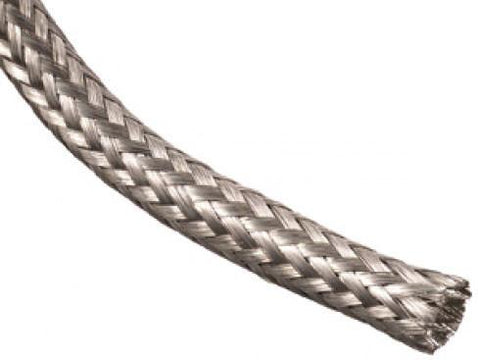

Mil-Spec AA59569 - QQB575 Round & Flat Screening / Tin Copper Braid

QQB575 R 36T0031 or AA59569 R 36T0031

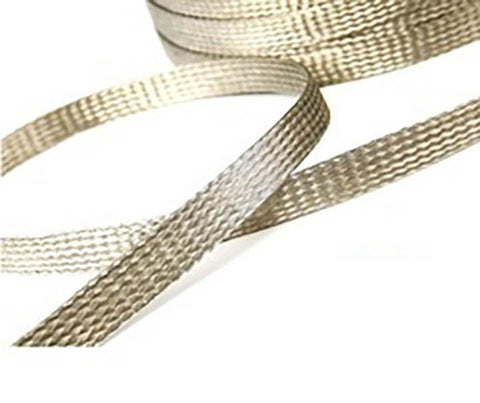

R = Round (replace with F for flat)
T = Tinned Copper (replace with S for Silver & N for Nickel)

Tubular braids shall be designed to provide a minimum 90% coverage, except for 0.078 inch and smaller braids, which will have a 70% minimum coverage.

Contact us for Price and Availability.

Stahl Metall Engineering specialises in Aerospace, Defence, Marine, Rail, Medical and Industrial interconnect products, including Connector / Backshells, Wire/Cable, Heat shrink, Cable markers, EMI Braid products.

tinned-copper-braid Stahl metall

Contact us for Price and Availability.



Old Mil Part Number QQB575 New Mil Part Number AA59569 Strand Wire
Size (AWG)
Tubular ID Inches (mm)
QQB575R36T031 AA59569R36T0031 36 .031(.787)
QQB575R36T062 AA59569R36T0062 36 .062(1.575)
QQB575R34T062 AA59569R34T0062 34 .062(1.575)
QQB575R32T062 AA59569R32T0062 32 .062(1.575)
QQB575R36T078 AA59569R36T0078 36 .078(1.981)
QQB575R36T109 AA59569R36T0109 36 .109(2.768)
QQB575R34T109 AA59569R34T0109 34 .109(2.768)
QQB575R32T109 AA59569R32T0109 32 .109(2.768)
QQB575R36T125 AA59569R36T0125 36 .125(3.175)
QQB575R34T125 AA59569R34T0125 34 .125(3.175)
QQB575R32T125 AA59569R32T0125 32 .125(3.175)
QQB575R36T156 AA59569R36T0156 36 .156(3.962)
QQB575R36T171 AA59569R36T0171 36 .171(4.343)
QQB575R34T171 AA59569R34T0171 34 .171(4.343)
QQB575R32T171 AA59569R32T0171 32 .171(4.343)
QQB575R36T203 AA59569R36T0203 36 .203(5.156)
QQB575R34T203 AA59569R34T0203 34 .203(5.156)
QQB575R32T203 AA59569R32T0203 32 .203(5.156)
QQB575R36T250 AA59569R36T0250 36 .250(6.35)
QQB575R30T281 AA59569R30T0281 30 .281(7.137)
QQB575R36T375 AA59569R36T0375 36 .375(9.525)
QQB575R34T375 AA59569R34T0375 34 .375(9.525)
QQB575R32T375 AA59569R32T0375 32 .375(9.525)
QQB575R30T375 AA59569R30T0375 30 .375(9.525)
QQB575R30T437 AA59569R30T0437 30 .437(11.01)
QQB575R36T500 AA59569R36T0500 36 .500(12.7)
QQB575R34T500 AA59569R34T0500 34 .500(12.7)
QQB575R32T500 AA59569R32T0500 32 .500(12.7)
QQB575R30T500 AA59569R30T0500 30 .500(12.7)
QQB575R30T562 AA59569R30T0562 30 .562(14.275)
QQB575R30T656 AA59569R30T0656 30 .656(16.662)
QQB575R36T781 AA59569R36T0781 36 .781(19.837)
QQB575R34T781 AA59569R34T0781 34 .781(19.837)
QQB575R32T781 AA59569R32T0781 32 .781(19.837)
QQB575R30T875 AA59569R30T0875 30 .875(22.225)
QQB575R30T1000 AA59569R30T1000 30 1.000(25.4)
QQB575R30T1125 AA59569R30T1125 30 1.125(28.575)
QQB575R30T1375 AA59569R30T1375 30 1.375(34.925)
QQB575R30T1500 AA59569R30T1500 30 1.5(38.1)
QQB575R30T2000 AA59569R30T2000 30 2.0(50.8)



Old Mil Part Number QQB575 New Mil Part Number AA59569 Strand Wire
Size (AWG)
ID Inches (mm)
QQB575F36T031 AA59569F36T0031 36 .031(.787)
QQB575F36T062 AA59569F36T0062 36 .062(1.575)
QQB575F34T062 AA59569F34T0062 34 .062(1.575)
QQB575F32T062 AA59569F32T0062 32 .062(1.575)
QQB575F36T078 AA59569F36T0078 36 .078(1.981)
QQB575F36T109 AA59569F36T0109 36 .109(2.768)
QQB575F34T109 AA59569F34T0109 34 .109(2.768)
QQB575F32T109 AA59569F32T0109 32 .109(2.768)
QQB575F36T125 AA59569F36T0125 36 .125(3.175)
QQB575F34T125 AA59569F34T0125 34 .125(3.175)
QQB575F32T125 AA59569F32T0125 32 .125(3.175)
QQB575F36T156 AA59569F36T0156 36 .156(3.962)
QQB575F36T171 AA59569F36T0171 36 .171(4.343)
QQB575F34T171 AA59569F34T0171 34 .171(4.343)
QQB575F32T171 AA59569F32T0171 32 .171(4.343)
QQB575F36T203 AA59569F36T0203 36 .203(5.156)
QQB575F34T203 AA59569F34T0203 34 .203(5.156)
QQB575F32T203 AA59569F32T0203 32 .203(5.156)
QQB575F36T250 AA59569F36T0250 36 .250(6.35)
QQB575F30T281 AA59569F30T0281 30 .281(7.137)
QQB575F36T375 AA59569F36T0375 36 .375(9.525)
QQB575F34T375 AA59569F34T0375 34 .375(9.525)
QQB575F32T375 AA59569F32T0375 32 .375(9.525)
QQB575F30T375 AA59569F30T0375 30 .375(9.525)
QQB575F30T437 AA59569F30T0437 30 .437(11.01)
QQB575F36T500 AA59569F36T0500 36 .500(12.7)
QQB575F34T500 AA59569F34T0500 34 .500(12.7)
QQB575F32T500 AA59569F32T0500 32 .500(12.7)
QQB575F30T500 AA59569F30T0500 30 .500(12.7)
QQB575F30T562 AA59569F30T0562 30 .562(14.275)
QQB575F30T656 AA59569F30T0656 30 .656(16.662)
QQB575F36T781 AA59569F36T0781 36 .781(19.837)
QQB575F34T781 AA59569F34T0781 34 .781(19.837)
QQB575F32T781 AA59569F32T0781 32 .781(19.837)
QQB575F30T875 AA59569F30T0875 30 .875(22.225)
QQB575F30T1000 AA59569F30T1000 30 1.000(25.4)
QQB575F30T1125 AA59569F30T1125 30 1.125(28.575)
QQB575F30T1375 AA59569F30T1375 30 1.375(34.925)
QQB575F30T1500 AA59569F30T1500 30 1.5(38.1)
QQB575F30T2000 AA59569F30T2000 30 2.0(50.8)


QQB575 R 36T0031 or AA59569 R 36T0031

R = Round (replace with F for flat)
T = Tinned Copper (replace with S for Silver & N for Nickel)

Tubular braids shall be designed to provide a minimum 90% coverage, except for 0.078 inch and smaller braids, which will have a 70% minimum coverage.

Contact us for Price and Availability.

Stahl Metall Engineering specialises in Aerospace, Defence, Marine, Rail, Medical and Industrial interconnect products, including Connector / Backshells, Wire/Cable, Heat shrink, Cable markers, EMI Braid products.
