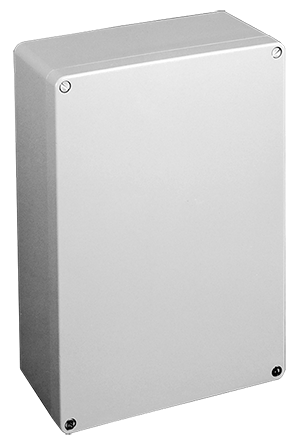

Hoffman COMPACT, Type 4X
For use in indoor or outdoor applications, these stylized enclosures protect components and controls in corrosive environments.
Contact us for Pricing and Availability
Applications:
Specifications:
Cast aluminum; no welded seams or sharp corners
Stainless steel captivated cover screws placed outside sealed area
Two to four grounding screws located on enclosure back wall
Oil-resistant O-ring gasket
Tongue-and-groove sealing construction
Threaded internal bosses provided for mounting optional panels, rails and other components
Mounting holes provided in corners outside of gasketed area
Finish:
RAL 7042 gray finish inside and out.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP66
Accessories:
DIN Type Rails
Hinge Kit
Mounting Bracket Kits
DIN Type Rails
Modifications and Customizations:
Contact us for Data sheets, Pricing and Availability
Notes:
A x B x C are internal dimensions.
Purchase panels separately.
FECCA886, FECCA1286 and FECCA1886 enclosures have only two mounting holes.
Contact us for Pricing and Availability
Applications:
For use in indoor or outdoor applications, these stylized enclosures protect components and controls in corrosive environments.
Specifications:
Cast aluminum; no welded seams or sharp corners
Stainless steel captivated cover screws placed outside sealed area
Two to four grounding screws located on enclosure back wall
Oil-resistant O-ring gasket
Tongue-and-groove sealing construction
Threaded internal bosses provided for mounting optional panels, rails and other components
Mounting holes provided in corners outside of gasketed area
Finish:
RAL 7042 gray finish inside and out.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP66
Accessories:
DIN Type Rails
Hinge Kit
Mounting Bracket Kits
DIN Type Rails
Modifications and Customizations:
Contact us for Data sheets, Pricing and Availability
Notes:
A x B x C are internal dimensions.
Purchase panels separately.
FECCA886, FECCA1286 and FECCA1886 enclosures have only two mounting holes.
| Catalog Number | Height (A) in. | Width (B) in. | Depth (C) in. |
|---|---|---|---|
| CCA12128 | 4.8 | 4.8 | 3.15 |
| CCA1286 | 4.92 | 3.15 | 2.24 |
| CCA16169 | 6.3 | 6.3 | 3.54 |
| CCA1886 | 6.89 | 3.15 | 2.24 |
| CCA202311 | 7.87 | 9.06 | 4.33 |
| CCA22128 | 8.66 | 4.72 | 3.15 |
| CCA26169 | 10.24 | 6.3 | 3.54 |
| CCA332311 | 12.99 | 9.06 | 4.33 |
| CCA332318 | 12.99 | 9.06 | 7.09 |
| CCA36169 | 14.17 | 6.3 | 3.54 |
| CCA886 | 2.95 | 3.15 | 2.24 |
