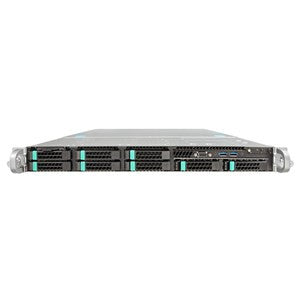

Intel LWT1208GXXXXX26 Server [Intel / Servers] - Server System
L9 System E5-2609V4, 4x8GB DDR4, 120GB SSD DC S3510 Series
LWT1208GXXXXX26
consist of
|
R1208WT2GSR |
Intel® Server System R1208WT2GSR |
1 |
|
E5-2609v4 |
Intel Xeon E5-2609v4 |
1 |
|
M393A1G43DB0-CPB |
8GB (1x8GB) RDIMM, DDR4, Dual Rank, 2133Mhz |
4 |
|
SSDSC2BB120G601 |
Intel® SSD DC S3510 Series (120GB, 2.5in SATA 6Gb/s, 16nm, MLC) |
1 |
|
FXX750PCRPS |
750W Common Redundant Power Supply FXX750PCRPS (Platium-Efficiency) |
1 |
|
AXXRMM4LITE |
Remote Management Module AXXRMM4LITE |
1 |
Please Contact us for Datasheets, Pricing and Availability
| Specifications | |
|---|---|
| Dimensions | 430 x 710 x 44cm |
| Drive Bay | 8 |
| Expansion Slot | 1x PCIe x4, 1 x PCIe x8,, 2x PCI2 x16 (GEN3) |
| Form Factor | 1U Rack |
| I/O Connectors | USB Ports x8, SATA Ports x10, RAID Configurationl SW RAID 0, 1, 10, optional 5, Serial Ports x2, Integrated LAN 2x 1GbE |
| Integrated Graphics | Yes |
| LAN | 2x 1Gb |
| Memory/Type/Bus/Max. | DDR4, 24 Slots (4 x 8Gb installed) |
| Power Supply | 750W |
| Processor | 1 x Intel Xeon E5-2609v4 |
| Processor Socket | 2 x 2011-V3 |
| Raid | SW RAID 0, 1, 10, optional 5 |
| Storage Interface | SATA X 10 |
| Warranty | 3 Years |
| Weight | TBA |
