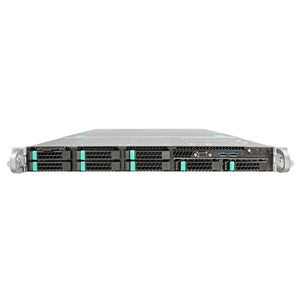

Intel LW21304GXXXXX21 Server [Intel / Servers] - Server System
L9 System E5-2620V4, 4x8GB DDR4, 120GB SSD DC S3510 Series
LW21304GXXXXX21
consist of
|
R1304WT2GSR |
Intel® Server System R1304WT2GSR |
1 |
|
E5-2620v4 |
Intel Xeon E5-2620v4 |
1 |
|
M393A1G43DB0-CPB |
8GB (1x8GB) RDIMM, DDR4, Dual Rank, 2133Mhz |
4 |
|
SSDSC2BB120G601 |
Intel® SSD DC S3510 Series (120GB, 2.5in SATA 6Gb/s, 16nm, MLC) |
1 |
|
FXX750PCRPS |
750W Common Redundant Power Supply FXX750PCRPS (Platium-Efficiency) |
1 |
|
AXXRMM4LITE |
Remote Management Module AXXRMM4LITE |
1 |
Please Contact us for Datasheets, Pricing and Availability
| Specifications | |
|---|---|
| Dimensions | 16.93 x 27.95 x 1.72 inches |
| Drive Bay | 4 |
| Expansion Slot | PCIe x4 x1, PCI x8 x1, PCIe x16 x2 (gen 3) |
| Form Factor | 1U Rack |
| I/O Connectors | 8x USB ports, 10x SATA ports, 2x Serial ports, 2x LAN ports |
| Integrated Graphics | Yes |
| LAN | 2x 1GbE |
| Memory/Type/Bus/Max. | DDR4, 24 slots (4x8GB installed) |
| Power Supply | 750W x 1 (FXX750PCRPS) |
| Processor | E5-2620V4 |
| Processor Socket | Socket R3 (LGA2011-3) |
| Raid | SW RAID 0,1,10, optional 5 |
| Storage Interface | SATA x 10 |
| Warranty | 3 Years |
| Weight | |
