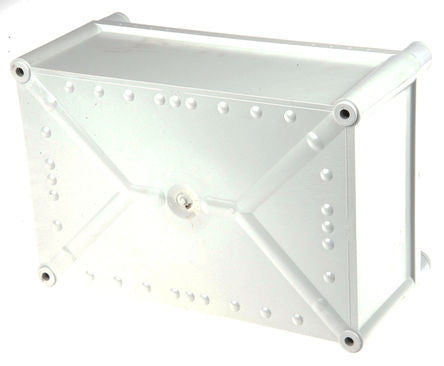

Polycarbonate Enclosure, IP66, IP67, 278 x 188 x 130mm  - SME188-2409

Polycarbonate Enclosure, IP66, IP67, 278 x 188 x 130mm - SME188-2409

$86.00

SME Series Polycarbonate Enclosures
Polycarbonate Enclosures

All enclosures have a light grey (RAL 7035) body colour. Operating temperature range is -40°C to +80°C (+120°C max short term).

Polyurethane gasket assures protection within the box
Flammability rating: UL 94-5V
Delivered with 4 sunken head lid screws and mounting screws for fixing electrical apparatus
Can be equipped with chassis plates and a DIN rail for fixing internal equipment


Modifications and Customizations:
Stahl Metall Engineering excels at modifying and customizing products to your specifications.
Contact us for Data sheets, Pricing and Availability
Body Material Polycarbonate
External Dimensions 278 x 188 x 130mm
External Length 278 mm
External Width 188 mm
External Height 130 mm
IP Rating IP66, IP67
Colour Grey
Lid Colour Grey
NEMA Enclosure Types.
