TE / Raychem Heat Shrink / Cable Markers Yellow (250pc) - TMS-SCE-1/4-2.0-4

TE / Raychem Heat Shrink / Cable Markers Yellow (250pc) - TMS-SCE-1/4-2.0-4

$300.00

TMS-SCE Military grade heat shrinkable wire identification sleeves.

Manufacturer: TE Connectivity
Product Category: Wire Identification
RoHS: RoHS Compliant Details
Brand: TE Connectivity / Raychem
Type: Heat Shrinkable Wire Identification Sleeves, Military Grade
Material: Polyolefin (PO)
Color: Yellow
Length: 2 in
Product: Labels, Heat Shrinkable
Family: TMS-SCE
Features: 3:1 Shrink Ratio
Packaging: Reel
Qualification: Commercial
Series: TMS-SCE
Factory Pack Quantity: 250
Temperature Range: - 55 C to + 135 C



TMS-SCE marker sleeves are designed to meet the wire and cable marking needs of manufacturers with high performance  requirements. Made from durable, flame retarded, radiation-crosslinked heat-shrinkable polyolefin,

TMS-SCE marker sleeves can be used in a wide variety of applications. The marker sleeves meet the performance requirements of SAE-AMS- DTL-23053/5 classes 1 and 3 and the TMS-SCE-2X products are made from tubing fully compliant with this specification.

The marks are  permanent immediately after printing and remain legible even
when exposed to abrasion, aggressive cleaning solvents, and military fuels and oils. The sleeves meet the mark permanence requirements of SAE AS81531 4.6.2 and MIL-STD-202F both before and after shrinking.

Both 2:1 and 3:1 shrink ratios are available. The 2:1 products provide a thick, rugged sleeve wall and are particularly easy to handle. The lightweight 3:1 products provide extremely fast shrinking and cover a wider range of wire diameters, thus simplifying inventory.

The marker sleeves are designed to be printed by computer-driven dot matrix or thermal transfer printers, providing several  advantages in terms of reduced errors, cycle time and cost.

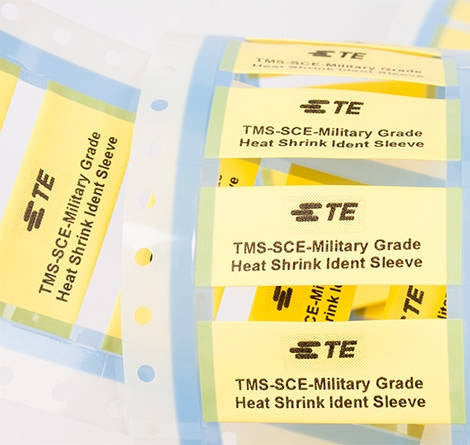

Supplied in a thin, flat “ladder” format, the sleeves are held horizontally between two hole-punched polyester strips. This configuration feeds directly from the storage box into a Tyco Electronics-recommended printer.

Tyco Electronics-recommended ribbons should always be used. The ladder format provides automatic kitting of the marker sleeves in the desired sequence. A standard heat gun with reflector is used to shrink the sleeves onto the wire or cable.

Features and benefits

Permanent identification sleeves.
Computer-printable.
Lightweight for aerospace applications.
Military specification material and print performance.
2:1 and 3:1 shrink ratio.
CSA Certified.
UL Recognized, VW all flame tubing test rated.
Quick recovery for heat sensitive areas.

Temperature rating
Operating temperature range: – 55°C to +135°C
Minimum recovery temperature: +85°C
Maximum storage temperature: +40°C

Specifications/approvals
TE : RW-2511

Military:
SAE-AMS-DTL-23053/5 classes1 and 3,
SAE-AS81531 4.6.2, MIL-STD-202F Method 215J

Industry
UL Recognized – Standard 224, file E35586
CSA Certified – File 31929

Tyco Electronics printer
AM6310 (dot matrix)
T200 Series (thermal transfer, low volume)
T312M (thermal transfer)

Tyco Electronics Ribbon.
1892BK04-RIBBON (dot matrix)
TMS-101-RIBBON-4RPSCE (thermal transfer for T208M)
TMS-RJS-RIBBON-4RPSCE (thermal transfer for T312M)
