MVTI-5121-ML-1-13 - 22kV Single Core Push On Termination with Mechanical Connectors

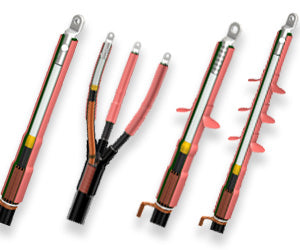

22kV Single Core Push On Termination with Mechanical Connectors
Contact us for Price and Availability.
Features
- Integrated geometrical stress cone
- Suitable for hexagonal/deep indent crimp and mechanical lugs according to IEC 61238
- Compact design
- Long creepage distance
- Easy to install
- Reduced waste for disposal
- Tested in accordance to CENELEC HD.629.1.S2:2006 and IEC 60502-4
- Manufactured according to ISO 9001 and ISO 14001
- Outstanding weathering, UV and ozone Resistance
- Chemically resistant
- Resistant to fungi
- Excellent electrical properties including good tracking resistance and high dielectric strength
- Hydrophobic (water repelling)
- Non-Flammable
- Self Extinguishing
- Retains performance over wide temperature range –55 to +180°C
- Highly elastic material with good resistance to permanent set
- No shelf-life issues
The product line is designed for polymer cables from,
25 to 300 mm2 for 12 kV and 24 kV,
35 to 400 mm2 for 36 kV and,
50 to 400mm2 for 42 kV.
|
Catalogue Reference Indoor |
Catalogue Reference Outdoor |
Voltage |
Cross Section |
Diameter over Insulation |
|
kV |
(mm2) |
(mm) |
||
|
MVTI-5121-ML-1-13 |
MVTO-5121-ML-1-13 |
22 |
25 - 95 |
17.9 - 25.0 |
|
MVTI-5121-ML-1-17 |
MVTO-5121-ML-1-17 |
22 |
25 - 95 |
17.9 - 25.0 |
|
MVTI-5131-ML-4-13 |
MVTO-5131-ML-4-13 |
22 |
95 - 240 (300)* |
23.5 - 34.6 |
|
MVTI-5131-ML-4-17 |
MVTO-5131-ML-4-17 |
22 |
95 - 240 (300)* |
23.5 - 34.6 |
|
MVTI-5131-ML-5-13 |
MVTO-5131-ML-5-13 |
22 |
120 - 300** |
24.3 - 34.6 |
|
MVTI-5131-ML-5-17 |
MVTO-5131-ML-5-17 |
22 |
120 - 300** |
24.3 - 34.6 |
|
Catalogue Reference |
Voltage |
Height Housing |
Creepage Distance |
Flashover Distance |
Diameter over Sheds |
Installed Length L1* |
|
kV |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
|
MVTI-5121 |
22 |
276 |
412 |
284 |
76 |
270 |
|
MVTI-5131 |
22 |
276 |
412 |
284 |
80 |
290 |
|
MVTO-5121 |
22 |
355 |
675 |
368 |
97 |
350 |
|
MVTO-5131 |
22 |
355 |
676 |
369 |
101 |
370 |
