RAYCHEM RPG RJ20 IP68 Enclosures 330 x 230 x 180mm

RAYCHEM RPG RJ20 IP68 Enclosures 330 x 230 x 180mm

$315.90

IP64, IP65, IP66, IP67, IP68, IP69K Enclosures

Size (Width x Length x Height) : For more sizes see below table

Please Contact us for Pricing and Availability

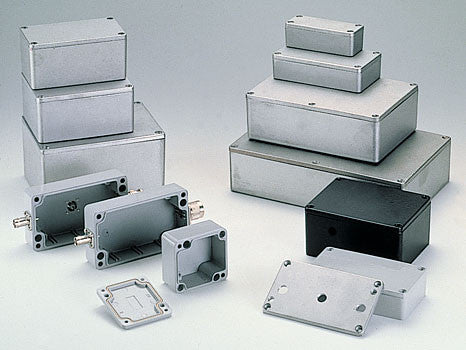

Die-cast Aluminum Enclosure
Impact Resistance over 7 Nm As per EN50014
Painted and Unpainted version
Operating Temperature (-50C to +135C) with Neoprene / Silicone gaskets
Corrosion Resistant
ROHS Compliant
100% free from radioactive content
Customize or modify to suit specified applications
Can be drilled and tapped to accommodate most thread forms
Certified: UL, IECEx, Ex

Material: AI Si 12, as per DIN EN1706
Components: Fastening thread M4 / M6 in the enclosure bottom
Gasket: Neoprene (-40C to +100C) / Silicone gasket (-50C to +135C)
Lid Screw: Stainless Steel 1.43 (A2) captive
Surface: Painted (standard) / Non Painted (please request)
Sizes: For more sizes see below table

Standard Colours:
RAL 7001, 7031, 7032, 7035, 7038, Black RAL 9004, White RAL 9010

Protection Class (as per IEC 60529):
IP64, IP65, IP66, IP67, IP68, IP69K

Modifications and Customizations:
SME excels at modifying and customizing products to your specifications.
Contact us for Data sheets, Pricing and Availability



Dimensions

Model/ID Height Width Length
SME001 30 45 50
SME002 34 64 98
SME003 34 64 150
SME004 34 64 58
SME005 57 80 75
SME006 57 80 125
SME007 57 80 175
SME008 57 80 250
SME009 81 100 100
SME010 81 100 160
SME025 80 100 200
SME011 81 120 122
SME021 81 120 220
SME022 90 120 122
SME012 90 120 220
SME027 90 140 200
SME026 117 120 220
SME015 91 160 160
SME013 90 160 260
SME014 90 160 360
SME028 100 180 180
SME029 100 180 280
SME019 113 200 230
SME017 110 230 280
SME018 111 230 330
SME030 110 230 200
SME020 180 230 330
SME031 110 310 400
SME032 180 310 400
SME033 110 310 600
SME034 180 310 600
SME035 110 230 400
